# Diagonal Matrix – Explanation & Examples

A **diagonal matrix **is a square matrix whose elements, other than the diagonal, are zero. There are certain conditions that must be met for a matrix to be called a diagonal matrix. Firstly, let’s check the formal definition of a diagonal matrix.

**A square matrix in which all the elements except the principal diagonal are zero is known as a diagonal matrix.**

In this article, we are going to take a close look at what makes a matrix diagonal, how to find diagonal matrices, properties of diagonal matrices, and the determinant of a diagonal matrix. Let’s start!

## What is a Diagonal Matrix?

A matrix to be classified as a diagonal matrix, it has to meet the following conditions:

- square matrix
- all elements (entries) of the matrix, other than the principal diagonal, has to be $ 0 $

A square matrix is said to be:

*lower triangular*if its elements above the principal diagonal are all $ 0 $*upper triangular*if its elements below the principal diagonal are all $ 0 $

Lower Triangular Matrix

Upper Triangular Matrix

AÂ **diagonal matrix** is a special square matrix that isÂ **BOTH** upper and lower triangular since all elements, whether above or below the principal diagonal, are $ 0 $.

## How to find Diagonal Matrix

To find, or identify, a diagonal matrix, we need to see if it is a square matrix andÂ *all* the elements besides the principal diagonal (diagonal that runs from top left to bottom right) are $ 0 $. Let’s take a look at the matrices shown below:

$ A = \begin{pmatrix} 3 & 0Â \\ 0 & { – 3 } \end {pmatrix} $

$ B = \begin{pmatrix} 1 & 0 & 0Â \\ 0 & 5 & 0 \\ 0 & 0 & { – 2 } \end {pmatrix} $

$ C = \begin{bmatrix} 10 & 0Â \\ 0 & 12 \\ 0 & 12Â \end {bmatrix} $

$ D = \begin{bmatrix} { – 5 } & 0 & 0Â \\ 0 & 0 & 0 \\ 0 & 0 & { 9 } \end {bmatrix} $

Note the following observations about each of the $ 4 $ matrices shown above:

- Matrix $ A $ is a square matrix because its has the same number of rows and columns ($ 2 \times 2 $ matrix). The principal diagonal has entries $ 3 $ and $ -3 $, respectively. All other entries are $ 0 $. Thus, this is a diagonal matrix.
- Matrix $ B $ is a square matrix because its has the same number of rows and columns ($ 3 \times 3 $ matrix). The principal diagonal has entries $ 1 $, $ 5 $, and $ -2 $, respectively. All other entries are $ 0 $. Thus, this is a diagonal matrix.
- A false glance at Matrix $ C $ will make us think that it is a diagonal matrix. But, first and foremost, it isÂ
**not**a square matrix. Hence, itÂ**cannot**be a diagonal matrix. - This one’s a bit tricky. First of all, it is in fact a square matrix ( $ 3 \times 3 $ ). You will think that it is
**notÂ**a diagonal matrix.*But why? Is it because there’s a $ 0 $ in the middle?*If you take a closer look at the definition of a diagonal matrix, you will see that nowhere does it say that the entries in the diagonal cannot be $ 0 $! The condition is that the elements other than the diagonal

**has to be $ 0 $**. So, even if there are elements that are $ 0 $ in the diagonal, it won’t matter. As long as the elementsÂ**besides**the diagonal are $ 0 $, it will be a diagonal matrix.Thus, Matrix $ D $ is in fact a diagonal matrix!

This brings us to $ 2 $Â **special** types of diagonal matrices:

- Identity Matrix
- Zero Matrix

**Identity Matrix**

This is a square matrix in which all the entries in the principal diagonal are $ 1 $ and all other elements are $ 0 $. A $ 2 \times 2 $ and a $ 3 \times 3 $ identity matrices are shown below.

$ 2 \times 2 $ identity matrix

$ \begin{bmatrix} 1 & 0 \\ 0 & 1 \end {bmatrix} $

$ 3 \times 3 $ identity matrix

$ \begin{bmatrix} 1 & 0 & 0Â \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end {bmatrix} $

You can read more about identity matrices here.

**Zero Matrix**

A matrix in which all the elements are $ 0 $.Â A $ 2 \times 2 $ and a $ 3 \times 3 $ zero matrices are shown below.

$ 2 \times 2 $ zero matrix

$ \begin{bmatrix} 0 & 0 \\ 0 & 0 \end {bmatrix} $

$ 3 \times 3 $ zero matrix

$ \begin{bmatrix} 0 & 0 & 0Â \\ 0 & 0 & 0 \\ 0 & 0 & 0 \end {bmatrix} $

Now, let’s look at some properties of diagonal matrices.

## Properties of Diagonal Matrices

There are several properties of diagonal matrices but for the purpose of this article, we will look at $ 3 $ properties of diagonal matrices. Below, we take a look at the properties and their examples.

**Property 1:**

When $ 2 $ diagonal matrices of the same order are *added or multiplied* together, the resultant matrix is another diagonal matrix with the same order.

Consider the matrices shown below:

$ A = \begin{bmatrix} 3 & 0 \\ 0 & 4 \end {bmatrix} $

$ B = \begin{bmatrix} 1 & 0 \\ 0 & 5 \end {bmatrix} $

Now, weÂ **add** both the $ 2 \times 2$ matrices and show that the resultant matrix is also diagonal.

$ A + B = \begin{bmatrix} 3+1 & 0+0 \\ 0+0 & 4+5 \end {bmatrix} $

$ A + B = \begin{bmatrix} 4 & 0 \\ 0 & 9 \end {bmatrix} $

Thus, we see that the resultant matrix, $A + B$, is also a diagonal matrix of the order $2 \times 2$.

Let’s check matrix multiplication with the same matrices. WeÂ **multiply** Matrix $A$ and Matrix $B$ and show that the resultant is also a diagonal matrix with the same order. Shown below:

$ A \times B = \begin{bmatrix} 3 & 0 \\ 0 & 4 \end {bmatrix} \times \begin{bmatrix} 1 & 0 \\ 0 & 5 \end {bmatrix} Â $

$ A \times B = \begin{bmatrix} {3\times1+0\times0} & 3\times 0 + 0 \times 5 \\ 0 \times 1 + 4 \times 0 & 0\times0 + 4 \times 5 \end {bmatrix} $

$ A \times B = \begin{bmatrix} 3 & 0 \\ 0 & 20 \end{bmatrix} $

Thus, we see that the resultant matrix, $A \times B$, is also a diagonal matrix of the order $2 \times 2$.

*To learn more about how we did matrix multiplication, please have a look at the article here.*

**Property 2:**

The *transpose *of a diagonal matrixÂ is the matrix itself.

If we have a matrix $A$, then we denote its transpose as $A^{T}$. Transposing a matrix means to flip its rows and columns. Let’s show that this property is true by calculating the transpose of Matrix $A$.

$ A = \begin{bmatrix} 3 & 0 \\ 0 & 4 \end {bmatrix} $

$ A^{T} = \begin{bmatrix} 3 & 0 \\ 0 & 4 \end {bmatrix} $

Interchanging the rows and columns produces the same matrix because of the entries besides the diagonal being $0$.

**Property 3:**

Under multiplication, diagonal matrices are commutative.Â

If we have $2$ matrices, $A$ and $B$, this means $AB = BA$. Let’s show this property by using the two matrices from above.

$ A \times B = \begin{bmatrix} {3\times1+0\times0} & 3\times 0 + 0 \times 5 \\ 0 \times 1 + 4 \times 0 & 0\times0 + 4 \times 5 \end {bmatrix} $

$ A \times B = \begin{bmatrix} 3 & 0 \\ 0 & 20 \end{bmatrix} $

Now,

$ B \times A = \begin{bmatrix} {1\times3+0\times0} & 1\times 0 + 0 \times 4 \\ 0 \times 3 + 5 \times 0 & 0\times0 + 5 \times 4 \end {bmatrix} $

$ B \times A = \begin{bmatrix} 3 & 0 \\ 0 & 20 \end{bmatrix} $

Thus, we have seen that $AB = BA$.

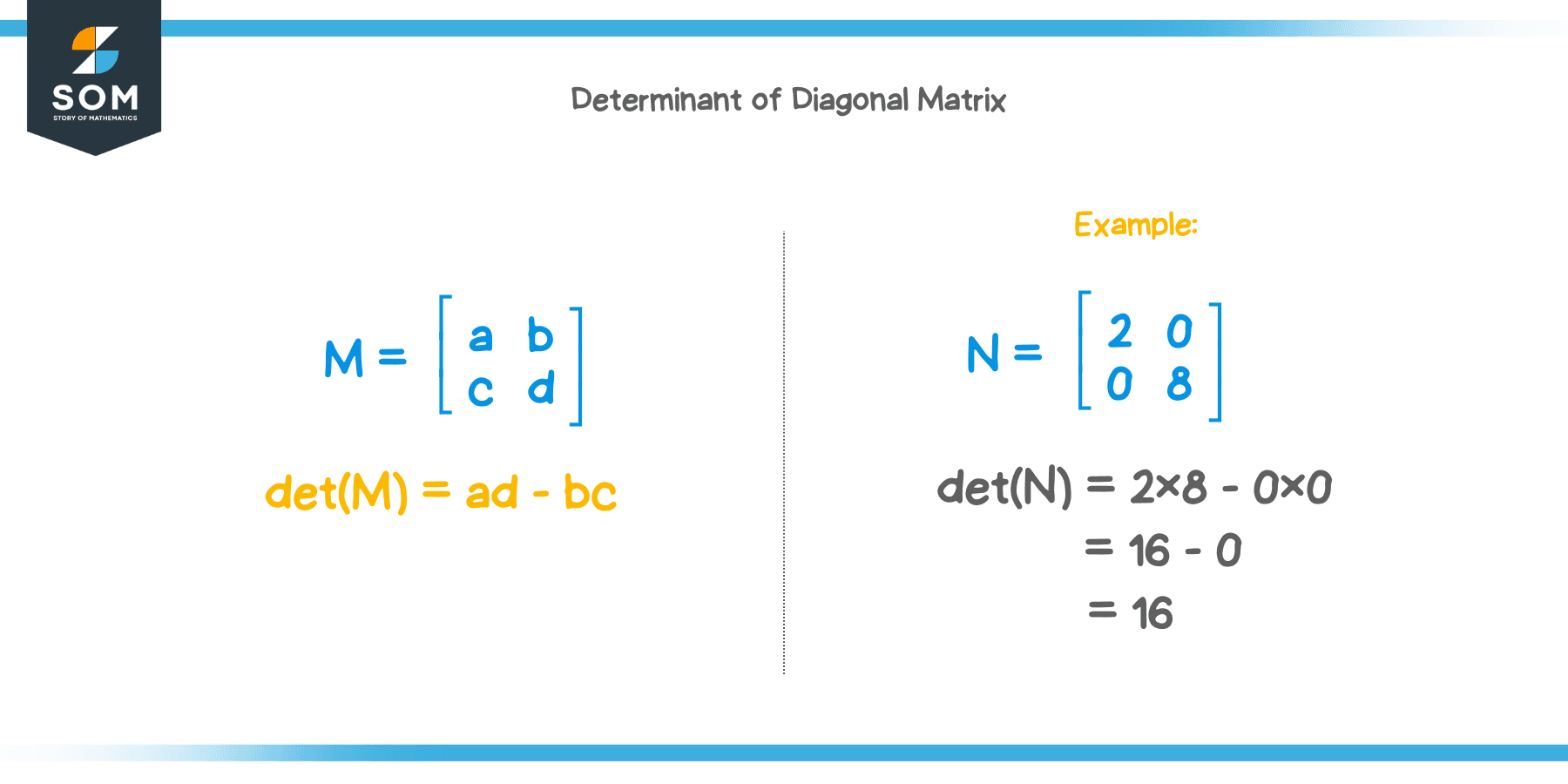

## Determinant of Diagonal Matrix

First, let’s look at the determinant of a $2\times2$ matrix.

Consider Matrix $M$ shown below:

$ M = \begin{pmatrix} a & b \\ c & dÂ \end{pmatrix} $

TheÂ **determinant** of this matrix is:

$ det(M) = ad – bc $

One property of a diagonal matrix is that* the determinant of a diagonal matrix is equal to the product of the elements in its principal diagonal.*

Let’s see if it’s true by finding the determinant of the diagonal matrix shown below.

$ N = \begin{pmatrix} 2 & 0 \\ 0 & 8Â \end{pmatrix} $

$ det(N) = (2\times8)-(0\times0) = 16 $

This is in fact theÂ **product of the elements** in its diagonal, $2\times8=16$.

**Example 1**

**Example 1**

For the matrices shown below, identify whether they are diagonal matrix or not.

$ A = \begin{bmatrix} {-2} & 0 \\ 0 & {-7} \end {bmatrix} $

$ B = \begin{bmatrix} a & 0 \\ 0 & b \\ 0 & d \end {bmatrix} $

$ C = \begin{bmatrix} 3 & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & 11 \end {bmatrix} $

$ D = \begin{bmatrix} 0 & 0 \\ 0 & 0 \end {bmatrix} $

Solution

- Matrix A is a $2\times2$ matrix with the elements being 0 other than the diagonal. So, thisÂ
**is a diagonal matrix**. - Matrix B is a $3\times2$ matrix. It’s not square, so immediately we can say that itÂ
**is not a diagonal matrix**. - Matrix C is a square matrix ($3\times3$). Also all the elements besides the diagonal are $0$. So, itÂ
**is a diagonal matrix**. Moreover, an entry of the diagonal is also $0$, it doesn’t matter as long as all the entriesÂ*except*the diagonal are zeros. - Matrix D is a special type of diagonal matrix. It is a zero matrix. Therefore, itÂ
**is a diagonal matrix**.

**Example 2**

**Example 2**

Will multiplying Matrix A and Matrix B result in a diagonal matrix?

$ A = \begin{bmatrix} {-9} & 0 \\ 0 & 0 \end {bmatrix} $

$ B = \begin{bmatrix} 1 & 0 \\ 1 & 1 \end {bmatrix} $

Solution

Matrix A is a diagonal matrix but Matrix B is not. So, multiplyingÂ Matrix A and BÂ **will not result in a diagonal matrix**.

**Example 3**

**Example 3**

Find the determinant of the matrix shown below:

$ B = \begin{bmatrix} 8 & 0 & 0 \\ 0 & 4 & 0 \\ 0 & 0 & {-1} \end {bmatrix} $

Solution

Matrix B is a $3\times3$ diagonal matrix. Recall that the product of all the entries of the diagonal of a diagonal matrix is its determinant. Thus, we simply multiply and find the answer:

$ det(B) = 8 \times 4 \times {-1} = – 32$

*Practice Questions*

*Practice Questions*

- Identify which of the following matrices are diagonal matrices.

$ J = \begin{pmatrix} 0 & 0 \\ 0 & {-5} \end{pmatrix} $

$ K = \begin{pmatrix} 0 & 2 \\ 1 & {-1} \end{pmatrix} $

$ L = \begin{bmatrix} -3 & 0 & 0 \\ 0 & {-5} & 0 \\ 0 & 0 & 3 \end{bmatrix} $ - Calculate the determinant of the matrix shown below:

$ T = \begin{bmatrix} -1 & 0 & 0 \\ 0 & {-1} & 0 \\ 0 & 0 & 4 \end{bmatrix} $ - Given

$ A = \begin{pmatrix} 2 & 0 \\ 0 & {-1} \end{pmatrix} $

$ B = \begin{pmatrix} 1 & 0 \\ 1 & {-2} \end{pmatrix} $Is $AB = BA$ ?

*Answers*

*Answers*

**Matrix J**is a square matrix. All the elements other than the principal diagonal are zeros. ThisÂ**is a diagonal matrix**.**Matrix K**is a square matrix but notÂ**all**the elements, except the diagonal, are zero. Thus, thisÂ**is not a diagonal matrix**.Â**Matrix L**is a square matrix (3\times3). The elements other than the diagonal entries are zero. So, thisÂ**is a diagonal matrix**.- This is a diagonal matrix. We can find theÂ
**determinant**of this matrix by taking the product of all the 3 entries of the diagonal. Thus, theÂ**determinant**is:

$ det(T) = -1 \times -1 \times 4 = 4 $ - If two matrices are diagonal, the multiplication of those two matrices areÂ
**commutative.**Looking at Matrix A and B, we can see that Matrix A is diagonal but Matrix B is not. Hence, their multiplicationÂ**will not be commutative**.Thus, $ AB \neq BA$.
